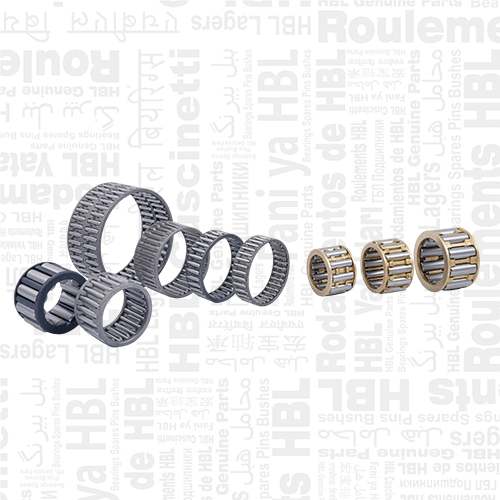

Needle Cage Bearings (Polymer , Steel & Brass Cage)

Single & Double Row Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. HBL complies to ISO 3030:2022 & GOST 24310-80 standard for needle cage bearings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved. The application is mainly in Transmission systems of Industrial & Automotive applications. These are also used in facilitating smooth functioning in Rigs & Engine Components.

Key Features of Single & Double Row Needle Roller and Cage Assembly:

Bearings manufactured by HBL are :
  • High radial load carrying capacity
  • High stiffness
  • High precision
  • Lowest cross-sectional height among rolling bearings
  • Accommodate axial displacement in both directions
H B L 's Production Range of Single & Double Row Needle Cage Bearings
B 15 X 21 X 15 B 43 X 48 X 27 BB 75 X 83 X 35 KM 30 X 40 X 30 KM 42 X 51.5 X 21.3
B 15 X 21 X 21 B 43 X 63 X 30 BB 75 X 89 X 57 KM 30 X 42 X 15 KM 42 X 52 X 20
B 16 X 22 X 12 B 44 X 50 X 38 BB 78 X 86 X 35 KM 30 X 42 X 20 KM 42 X 58 X 25
B 16 X 22 X 16 B 45 X 50 X 13 BB 82 X 90 X 50 KM 30 X 42 X 22 KM 44 X 54 X 20
B 16 X 22 X 20 B 45 X 50 X 20 BB 82 X 90 X 53.5 KM 30 X 42 X 25 KM 44 X 54 X 25
B 17 X 22 X 20 B 45 X 50 X 27 BB 85 X 93 X 46 KM 30 X 42 X 30 KM 44 X 57 X 25
B 18 X 24 X 20 B 45 X 65 X 27.5 BB 85 X 93 X 63 KM 30 X 42 X 35 KM 44.4 X 54 X 38
B 19 X 25 X 32 B 45 X 65 X 44 BB 90 X 98 X 46 KM 30.5 X 42.5 X 42 KM 45 X 52 X 18
B 19 X 25.2 X 25.2 B 47 X 52 X 17 BB 92 X 100 X 44.8 KM 32 X 40 X 20 KM 45 X 53 X 20
B 20 X 26 X 13 B 48 X 52 X 28 BB 92 X 100 X 50 KM 32 X 40 X 30 KM 45 X 53 X 23
B 20 X 26 X 17 B 48 X 53 X 30 BB 95 X 103 X 40 KM 32 X 44 X 18 KM 45 X 53 X 28
B 20 X 26 X 20 B 50 X 55 X 17 BB 95 X 103 X 60 KM 32 X 46 X 17.7 KM 45 X 54.4 X 25.4
B 26 X 31 X 17 B 60 X 65 X 30 KM 25 X 32 X 24 KM 35 X 47 X 19.5 KM 52 X 62 X 16
B 26 X 31 X 26B 60 X 66 X 23KM 25 X 33 X 16KM 35 X 47 X 22KM 52 X 62 X 20
B 26 X 32 X 14B 60 X 66 X 23.5KM 25 X 33 X 20KM 35 X 47 X 30KM 55 X 63 X 16
B 28 X 33 X 13B 65 X 70 X 20KM 25 X 33 X 24KM 35 X 47 X 35KM 55 X 63 X 20
B 28 X 33 X 17B 68 X 74 X 20KM 25 X 33 X 25KM 35 X 49 X 25KM 55 X 63 X 25
B 28 X 33 X 20B 73 X 79 X 20KM 25 X 35 X 20KM 35 X 50 X 30KM 55 X 63 X 28
B 28 X 33 X 27B 75 X 80 X 12.5KM 25 X 35 X 24KM 35 X 51 X 30KM 55 X 63 X 30
B 29 X 34 X 17B 75 X 81 X 20KM 25 X 35 X 30KM 35 X 51 X 45KM 57 X 65 X 30
B 29 X 34 X 27B 80 X 86 X 20KM 25 X 37 X 24KM 36 X 44 X 27KM 57 X 73 X 36.5
B 30 X 35 X 13BB 25 X 32 X 34KM 25 X 37 X 32.5KM 36 X 48 X 22KM 58.57 X 66.57 X 30
B 30 X 35 X 17BB 25.4 X 31.8 X 47KM 25 X 38 X 24KM 36 X 48 X 36KM 60 X 68 X 20
B 30 X 35 X 20BB 28 X 42 X 48KM 25 X 40 X 25KM 36 X 52 X 30KM 60 X 68 X 25
B 30 X 35 X 27BB 29 X 43 X 42.6KM 26 X 33 X 14KM 36 X 52 X 36KM 60 X 68 X 30
B 30 X 36 X 13BB 39 X 44 X 26KM 26 X 35 X 12KM 38 X 46 X 20KM 60 X 68 X 33.8
B 30 X 36 X 15BB 44 X 51 X 44KM 26 X 48 X 24KM 38 X 46 X 25KM 60 X 68 X 35
B 32 X 37 X 17BB 45 X 52 X 36KM 26 X 49 X 24KM 38 X 46 X 32KM 63.66 X 71.66 X 19.3
B 32 X 37 X 27BB 48 X 54 X 63KM 27.5 X 38 X 35KM 38 X 48 X 20KM 64 X 72 X 25
B 32 X 38 X 20BB 48 X 60 X 63KM 28 X 35 X 20KM 38 X 50 X 25KM 65 X 73 X 20
B 35 X 40 X 13BB 51 X 65 X 60KM 28 X 36 X 14KM 38 X 52 X 42KM 65 X 73 X 30
B 35 X 40 X 17BB 56 X 61 X 40KM 28 X 36 X 17KM 38.1 X 47.6 X 25.4KM 67 X 75 X 30
B 35 X 40 X 20BB 60 X 65 X 60KM 28 X 36 X 20KM 39 X 47 X 21KM 68 X 76 X 26.5
B 35 X 40 X 23.5BB 60 X 66 X 33KM 28 X 38 X 16KM 39 X 55 X 20KM 68 X 76 X 36
B 35 X 40 X 27BB 60 X 66 X 38KM 28 X 38 X 17KM 39 X 55 X 22KM 70 X 60 X 40
B 35 X 40 X 30BB 60 X 68 X 54KM 28 X 42 X 25KM 39 X 55 X 25KM 70 X 78 X 19.5
B 35 X 41 X 13BB 62 X 70 X 33KM 28 X 44 X 26KM 39 X 55 X 30KM 70 X 78 X 20
B 35 X 41 X 35BB 62 X 70 X 40KM 29 X 36 X 30KM 40 X 47 X 20KM 70 X 78 X 22
B 35 X 41 X 40BB 62.1 X 68.1 X 21.1KM 29 X 37 X 24KM 40 X 48 X 20KM 70 X 79.5 X 25.4
B 36 X 42 X 15.5BB 62.1 X 68.1 X 42.1KM 29 X 43 X 20KM 40 X 48 X 25KM 70 X 80 X 30
B 36 X 42 X 25BB 63.66 X 71.66 X 38.66KM 29 X 43 X 21KM 40 X 50 X 20KM 74 X 90 X 25
B 37 X 42 X 17BB 66 X 74 X 36KM 30 X 37 X 16KM 40 X 50 X 25KM 78 X 85 X 23
B 37 X 42 X 27BB 68 X 74 X 35KM 30 X 37 X 17KM 40 X 55 X 20KM 78 X 85 X 23.5
B 40 X 45 X 13BB 68 X 76 X 38.5KM 30 X 38 X 14KM 40 X 55 X 30KM 78 X 86 X 43.5
B 40 X 45 X 17BB 68 X 76 X 47.5KM 30 X 38 X 16KM 40 X 56 X 20.5KM 80 X 88 X 20
B 40 X 45 X 20BB 70 X 76 X 40KM 30 X 38 X 18KM 40 X 57 X 31.5KM 80 X 88 X 30
B 40 X 45 X 21BB 70 X 78 X 37KM 30 X 38 X 20KM 40.7 X 48.7 X 17KM 80 X 90 X 30
B 40 X 45 X 27BB 70 X 78 X 39KM 30 X 38 X 24KM 41 X 53 X 16KM 85 X 92 X 19.5
B 40 X 45 X 30BB 70 X 78 X 44KM 30 X 38 X 30KM 42 X 50 X 22KM 90 X 97 X 24
B 42 X 47 X 17BB 72 X 80 X 40KM 30 X 40 X 18KM 42 X 50 X 25KM 90 X 100 X 30
B 42 X 47 X 27BB 73 X 79 X 40KM 30 X 40 X 19.5KM 42 X 50 X 30KM 100 X 110 X 30
Prefix B stands for Single Row Thin Cage Assembly Bearings, Prefix BB stands for Double Row Thin Cage Assembly Bearings
Prefix KM stands for Heavy & Thick Single & Double Row Cage Assembly Bearings
